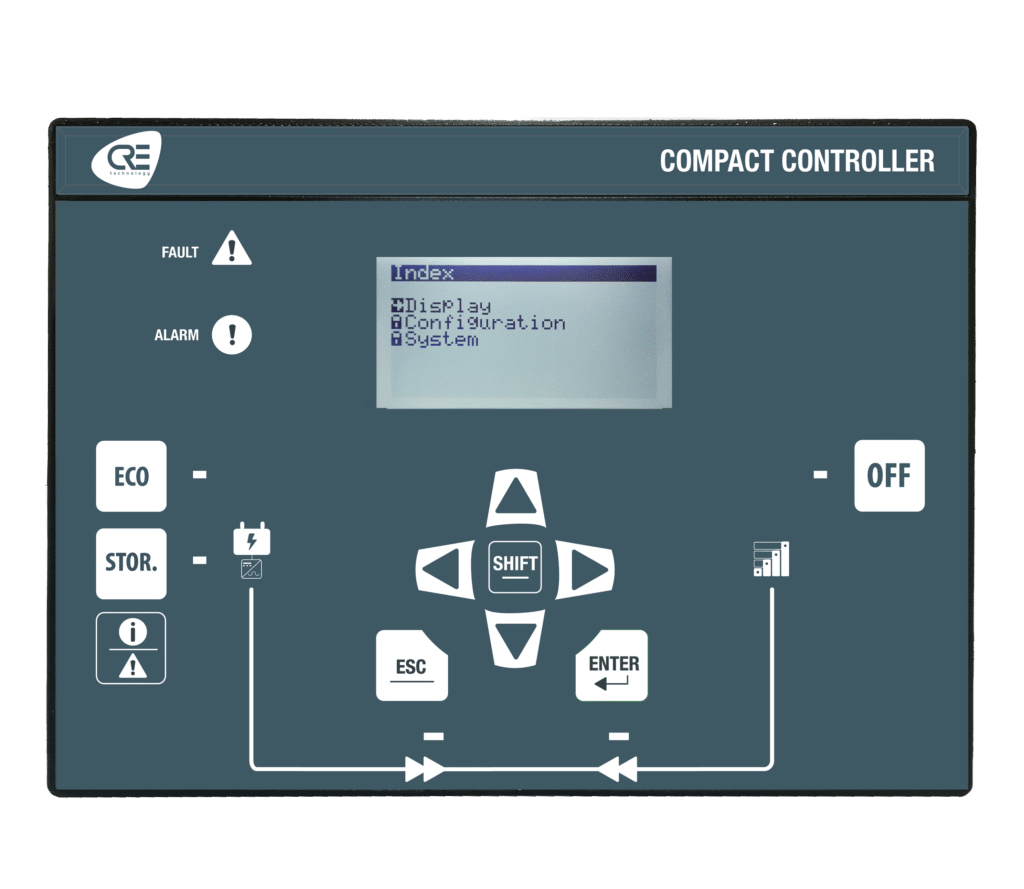

BAT COMPACT

Battery storage system controller

The BAT COMPACT is designed to efficiently manage battery inverters, guaranteeing optimum use of available energy resources while integrating into multi-source systems.

It is part of a complete range of controllers for managing energy sources and power plants: generators, mains, photovoltaic/wind, batteries storage, tie-breakers. It controls battery inverters in applications paralleled with one or more photovoltaic/wind inverters and one or more generators. This type of power plant can operate either on-grid or off-grid.

This module offers flexibility and time-saving thanks to simple wiring and easy programming. Focused on ease of use and connectivity, this product incorporates several advanced technologies that enhance the user experience and remote management.

The controller can be configured via front face, the i4Gen HMI, or the free i4Gen Suite software.

Variations

Battery inverters active and reactive power management

The BAT COMPACT regulates the active power of the battery inverters according to the system's energy requirements. Batteries are recharged when there is a surplus of energy, generally from solar or wind power, and discharged when energy is required. At the same time, it manages reactive power to guarantee optimal operation and preserve the installation's sustainability.
Optimizing stored energy

This product allows smart management of battery charging and discharging to maximize the use of free resources and reduce dependence on other energy sources.
Multi-sources interoperability

The BAT COMPACT can be interconnected with GENSYS COMPACT PRIME for generators, MASTER COMPACT 1B for mains incomers, and HYBRID COMPACT for photovoltaic inverters, providing a complete, modular solution for hybrid energy systems.
Easy connection to controllers

Automatic detection of controllers via the Ethernet network ensures fast, safe installation.
Guided experience and intuitive graphic display

Benefit from an intuitive user interface with two operating modes (standard and advanced) for simplified management. Information is clearly displayed via dynamic graphs for real-time monitoring.
Simplified programming

The Easyflex function makes it easy to create your own equations and programs, with intuitive, efficient drag-and-drop operation.
Automatic update

Keep your system up to date with automatic firmware updates for controller and PC software, without service interruption.
Remote access

Supervise, configure and control your controller remotely via a secure interface, wherever you are, for easier operations management.

Datasheets

BAT COMPACT – Datasheet
Certifications

BAT COMPACT – Certification of conformity
Technical Documentation

Application note – Equipotentialities

i4Gen Suite automatic updates – Readme

BAT COMPACT – Operator Manual

BAT COMPACT – Modbus Table

EN
Brochures

Range of Renewable & Hybrid Controllers – Brochure

Cables and peripherals – Brochure

Remote monitoring and control COMPACT range – Brochure

Product applications – Brochure

Related products

GENSYS COMPACT PRIME

The GENSYS COMPACT PRIME is designed for advanced management of multiple generators in power plants, while offering interoperability with other types of energy sources for more complex systems.
